Ev > Ürünler > Kullanılmış mühendislik makineleri > SX5250ZLJDB3842B Döküm Trailleri
Ürünler
yeni ürünler
SX5250ZLJDB3842B Döküm Trailleri
  • SX5250ZLJDB3842B Döküm Trailleri SX5250ZLJDB3842B Döküm Trailleri
  • SX5250ZLJDB3842B Döküm Trailleri SX5250ZLJDB3842B Döküm Trailleri

SX5250ZLJDB3842B Döküm Trailleri

Fabrikamızdan SX5250ZLJDB3842B döküm fragmanları satın almanızdan emin olabilirsiniz ve size en iyi satış sonrası hizmeti ve zamanında teslimatı sunacağız.

Talep Gönder

Ürün Açıklaması

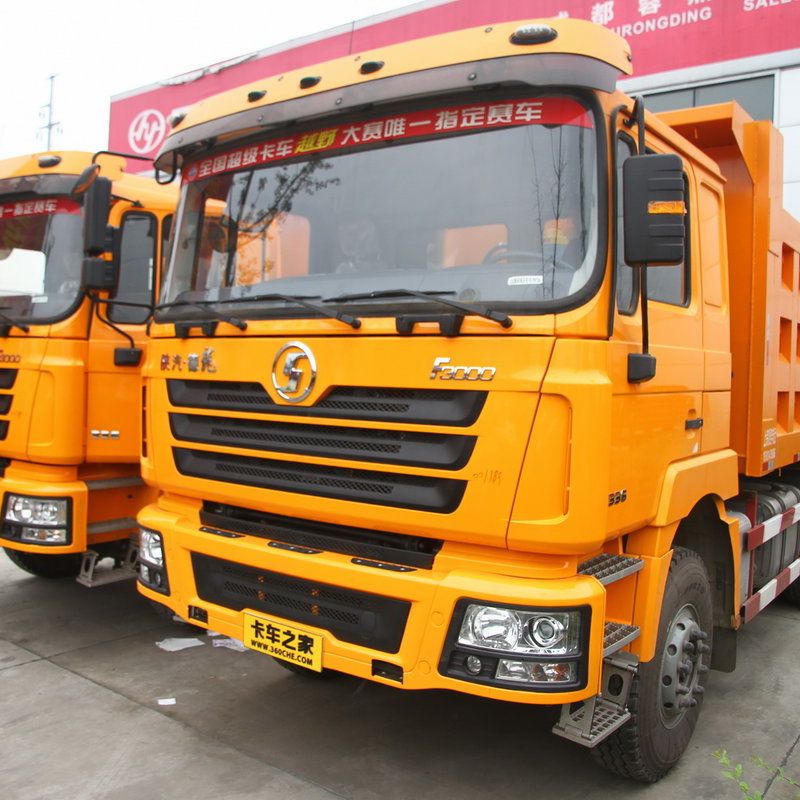

SX5250ZLJDB3842B Dump Trailers

SX5250ZLJDB3842B Drive form: 6X4
Wheelbase: 3975 + 1400mm Engine: Weichai WP12.375E50
Transmission: Fast 12JSD180T Rear bridge speed ratio: 5.262
Body length: 8.6 meters Body width: 2.55 m
Body height: 3.45 m Front wheel pitch: 2,036 mm
Rear wheel pitch: 1860 / 1860mm Vehicle weight: 12.5 tons
Rated load: 12.37 tons Total mass: 25 tons
Tonnage level: heavy truck Close Angle: 17 degrees
Leaving Angle: 23 degrees Origin: Xi'an, Shaanxi province
Market segmentation: urban construction muck, mining engineering Note: Speed ratio is optional at 5.92
Version: the enhanced version for mining use Total speed ratio: 5.262
Engine model: Weichai WP12.375E50 Engine brand: Weichai
Number of cylinders: 6 Fuel type: diesel oil
Displacement capacity: 11.596L Emission standard: National V
Max horsepower: 375 horsepower Maximum output power: 276kW
Maximum torque: 1,800 N · m Maximum torque speed: 1000-1400rpm
Rated rotation speed: 1,900 rpm Engine form: in-line, water-cooled, six-cylinder, electric control high-voltage common rail SCR
Box parameters
Box length: 5.8 m Box width: 2.35 m
Box height: 1.5 m
Cab:, medium length and flat roof
Transmission model: Fast 12JSD180T Transmission brand: Fast
Forward gear: 12 gears reverse gear number: 2
Fuel tank material: aluminum alloy Tank capacity: 400L
Frame size: 850300 (8 + 7) mm Front bridge description: MAN9.5T
Allowable load of the front axle: 7,000 kg Rear axle description: 16 TMAN double-stage cast bridge
Allowable rear axle load: 18000 (2-axis group) kg Speed ratio: 5.262
Suspension type (front / rear): four main piece + four horse riding Number of spring sheets: 10 / 12
Clutch: Φ 430 Steering machine: domestic production
Tyre specification: 11.00R20,12.00R20 16PR Number of tires: 10 tires


Sıcak Etiketler: SX5250ZLJDB3842B Döküm Trailler, Üreticiler, Tedarikçiler, Çin, Fabrika, Ücretsiz Örnek, Düşük Fiyat, Kalite, Özelleştirilmiş
Talep Gönder
Lütfen sorgunuzu aşağıdaki formda yapmaktan çekinmeyin. 24 saat içinde size cevap vereceğiz.
